Cabinet Dimensions: 18”W x 46”L x 12”H
Tank Dimensions: 10”W x 12”L x 8”D
Tank Volume: 3.5 gallons each
Ultrasonic Power: 300 watts per tank
Construction: All stainless steel, RFI filtered
Electrical: 120v ultrasonic system
Ultrasonic Cleaners Mainly application:
Applied for ultrasonic cleaning of engine parts, block,Semiconductor wafer, optical glass, clocks, beads and any other plastic, metal parts, anyway, the cleaning parts can immerse into the water without damage.
Why Medical Ultrasonic Cleaners need drying system?
1. If your cleaning objectives are easy to get rust, a drying system is needed to quickly dry the parts to avoid to be rusty.
2. If you want to save cost, you can just buy a single tank ultrasonic cleaner, and you can use a spray gun to dry the parts. But it will waste you some time.
How to judge a good ultrasonic cleaner?
Actually the principle of the different ultrasonic cleaners is the same, and the most important part of the cleaner is the PCB. So you need to make sure that the factory has an experienced engineer and good after service can be offered.
Medical Ultrasonic Cleaners Features:
All imported stainless steel structure, thickening Stainless steel plate,
adopting high Q value transducer and German binding process large power of ultrasonic output, set solvent heating and temperature automatic thermostat instrument, and temperature control range 0~100, base solvent, no pollution
Range: semi-conductor silicon chip, optical glass, parts of watch and clock, glasses, Jewelry, polyester filtration core and etc

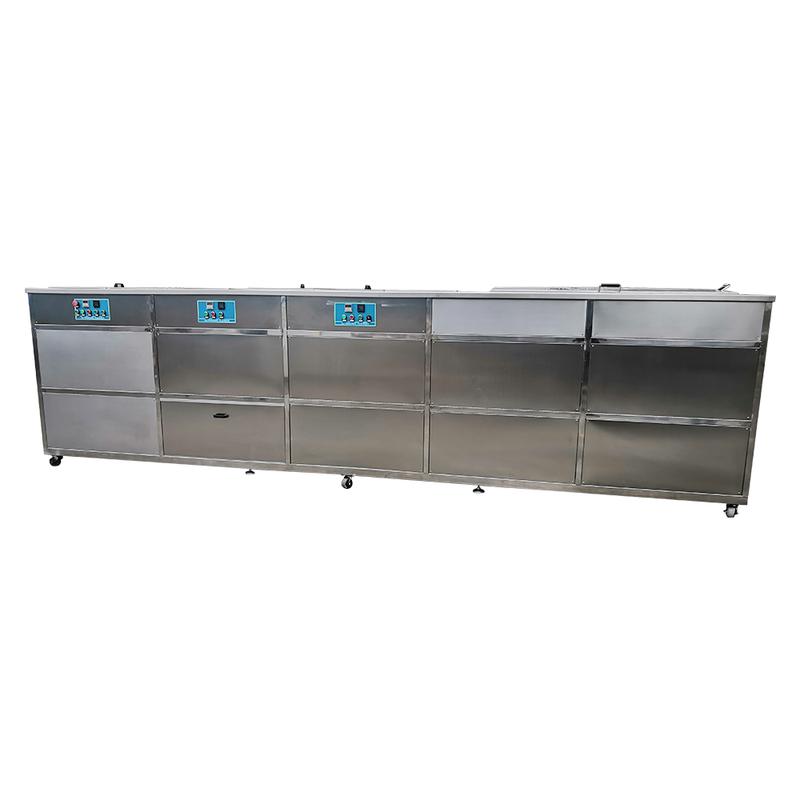

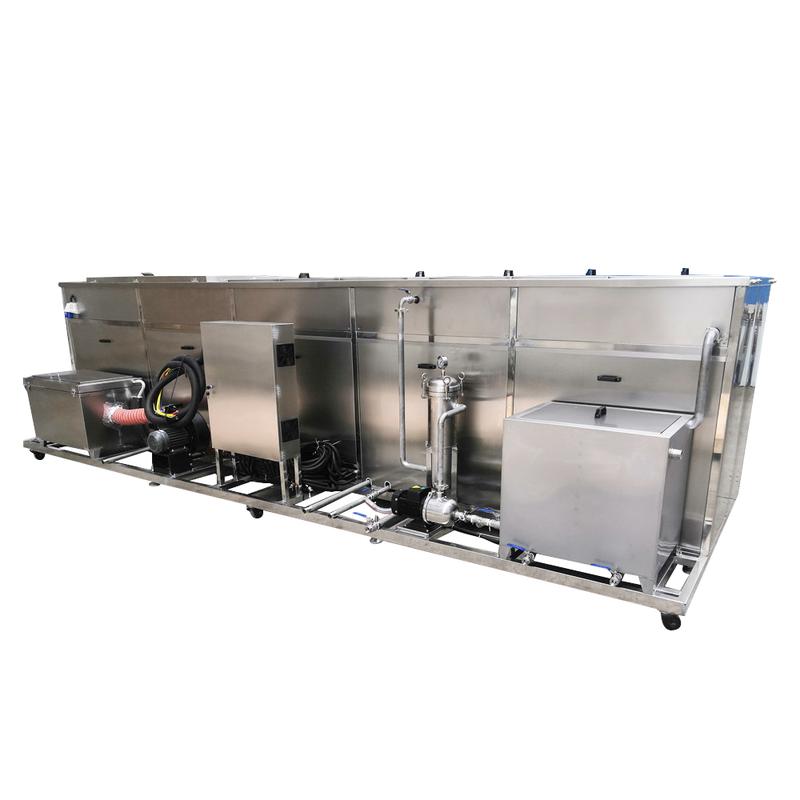

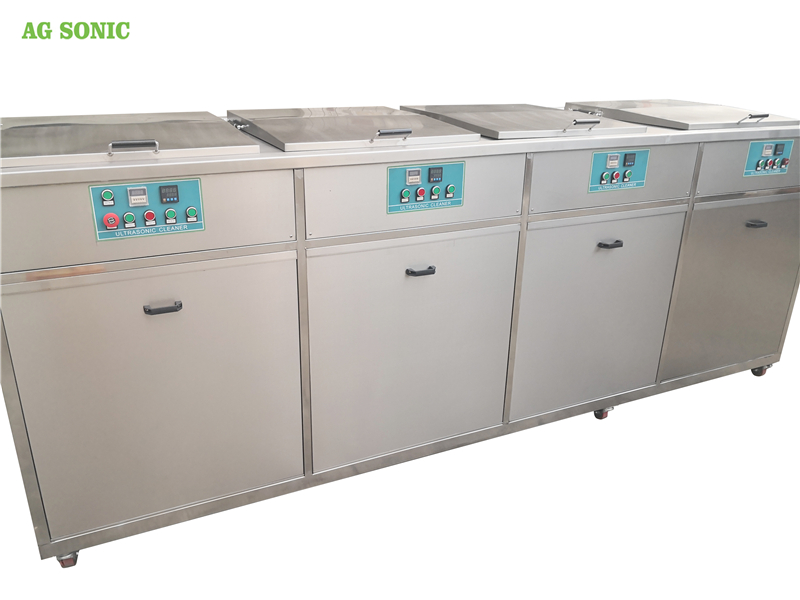

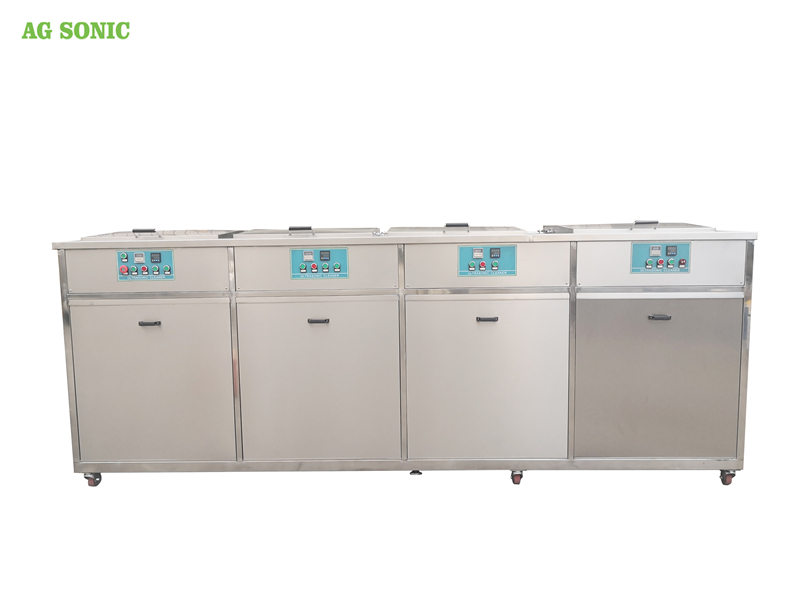

Our multi tank ultrasonic cleaning systems combined with the hot air dryer can be used as an effective part cleaning line by housing heated cleaning solution, cascading DI rinse water, and a final cascading DI rinse water with a final hot air dry step. The process would move from left to right: the parts would be cleaned, rinsed, rinsed and then dried.
The clean tank can be optionally equipped with pump filter systems which provide 5 micron filtration of the alkaline cleaning passivation solution. The common configuration shown is 3.5 gallon tanks, but any size tanks can be used in similar configuration use.
