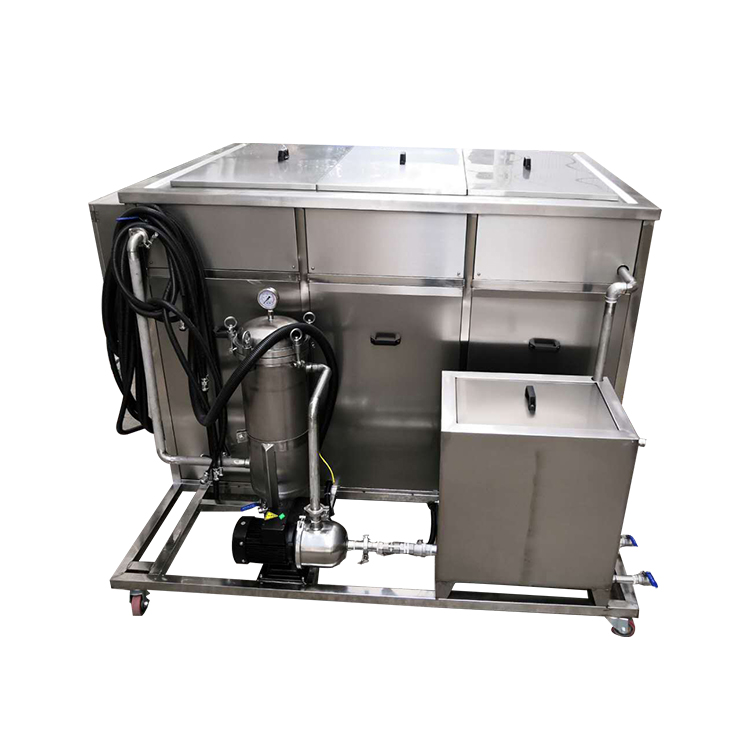

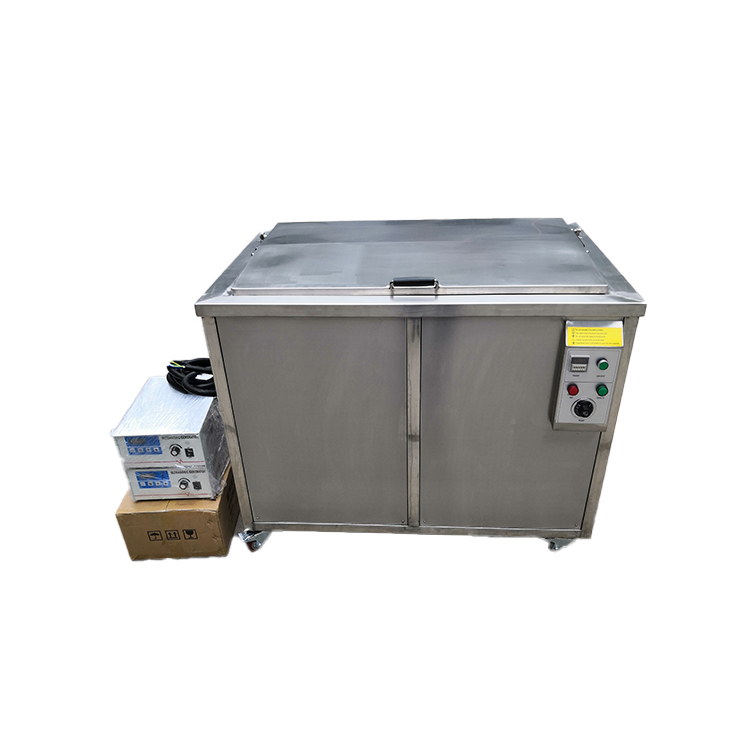

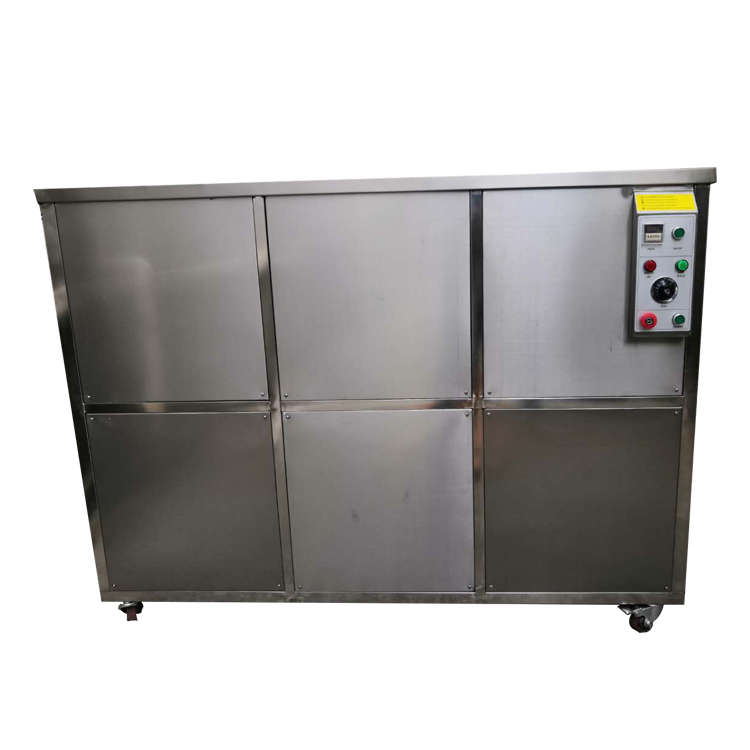

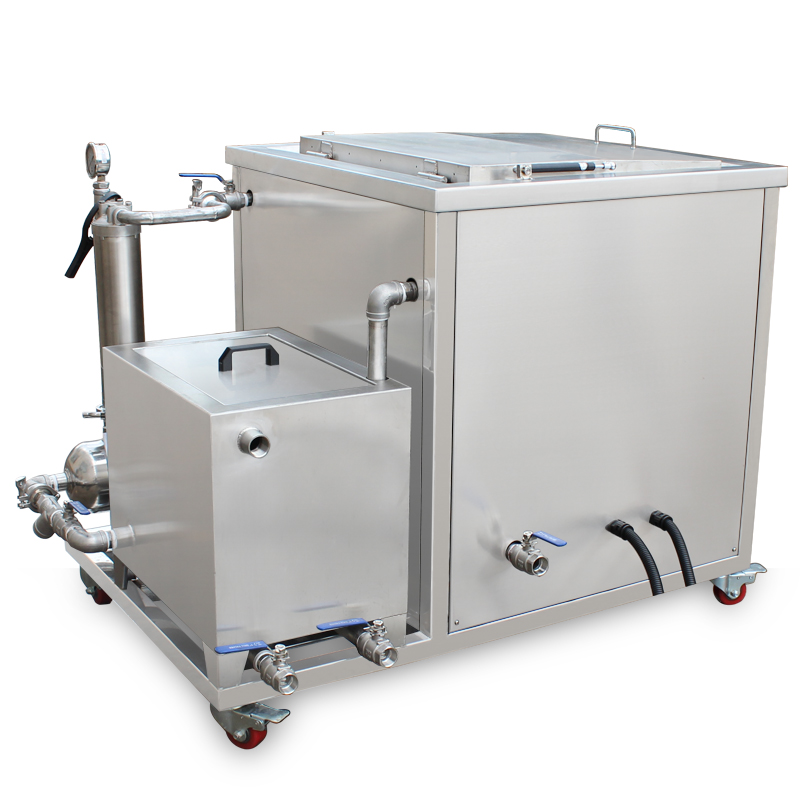

Hot Tank Set Up For Alloy Wheel Paint Stripping Clean Alloy Rim Wheel

Hot Tank Set Up For Alloy Wheel Paint Stripping Clean Alloy Rim Wheel

Ultrasonic tank size 1000x800x700mm .
Option :With filtration system.
Ultrasonic power :4500W .
Tank capacity :560L
Used : For Engine Block Ultrasonic Cleaning Machine
Frequency :28khz or 40KHZ
Heating power :12KW
2 year warranty.
With 2 set generator control

Features & Details

Ultrasonic  tank  657L

Inside tank size :L 135x W 64x H76cm

6000W ultrasonic power

120pcs transducer 6KW ultrasonic power

With With secondary

water tank+ pump +filter 100um

Parameter

 The advantages of the filtration + skimming system:

   –  saving of detergent and water

  – Filter pump with cartridge -> less frequent emptying and much cleaner bath

 -Oil skimmer tank -> allows the recycling of oil and heavy grease discharges

The advantages of external frequency generators:

   – Easy maintenance

 – No risk of water dripping on the remote electronics -> High reliability!

   – No transmission of heat from the tank to the electronics, increases service life

 – These frequency generators are equipped with a microprocessor allowing a continuous adjustment of the frequency for a better cleaning efficiency. The resonance frequency is thus permanently optimized whatever the temperature of the bath, the water level or the density of the objects.

> The advantages of the AG Sonic design for this Alloy Wheel Paint Stripping ultrasonic cleaner:

  – Heating elements immersed in the tank for rapid heating but without loss of useful volume

    – a basket which occupies the maximum useful space of the tank. Very strong handles with 4 supports for hoist lifting.

  -Casters wheel equipped with brakes and allowing easy movement of the cleaner.

    – The external ultrasonic generators are controlled from the control panel located on the front of the tank, all the controls are therefore within easy reach of the operator. The ultrasonic generators can thus be placed in safety on a storage support on the ground (supplied) away from the tank. The ultrasonic generators are thus protected from any accidental dripping of water and are perfectly ventilated.

Customized to your design

AG Sonic has been manufacturing ultrasonic parts cleaners for years, providing manufacturers with the highest-quality systems available.

  • Warranty:12 months warranty for AG SONIC ultrasonic cleaner.
  • Lifetime technical support: If any technical problem during warranty time, replacement parts will be sent free of charge.
  • Raw Material Inspection: We source from top suppliers. QC and engineers rigorously inspect raw materials for quality. Cavitation energy aids dirt removal.
  • 100%Product Inspection: QC checks production. Each unit tests 4+ hours pre – pack; sales send inspection pics.
Request Quote

[wpforms id=”13019″]

We Provide high quality products

Why Choose Us

  • Hight quality

  • Fashion designs reasonable & competitive price. fast lead time
  • Professional manufacturer

  • Professional manufacturer. Welcome to visit our website.
  • After Sale Service

  • All products will have been strictly Quality Checked and 2 year warranty,

Frequently Asked Questions

A: Ultrasonic Cleaning is the use of sound waves through water to create microscopic implosions, removing contamination from surfaces, nooks and crannies.

A: The technical process: Ultrasonic energy is introduced into the body of water via transducers.

A: We recommend that you choose the right cleaning agent by the cleaning effect you want to achieve.

A: Most poor cleaning usually results from improper control of one or more process variable(s); such as choosing the wrong detergent solution, insufficient heat, or not allowing enough time for the particular soil to be removed. If you suspect that your ultrasonic cleaner is not cavitating properly, there are two simple tests you can perform: the “glass slide” test and the “foil” test.

A:Rinsing is recommended to remove any chemical residue, which could be harmful to the part. Parts can be rinsed right in your ultrasonic cleaner, using a clean water bath, or in a separate tub containing tap, distilled or deionised water.

A: Heat usually enhances and speeds up the cleaning process, and most detergent solutions are designed to work best at an elevated temperature. The best way to find the optimum temperature, which will give you the fastest, cleanest and safest results, is to run tests. Usually, the best results are within the 50°C to 75°C range.

A: I would definitely recommend, especially the particular unit we have.

A: We did plan originally to get a washer disinfector, but we didn’t think it was worthwhile investment compared to the ultrasonic cleaner.

A:It really speeds up the decontamination process and our staff don’t have hand scrub equipment,.
