Cleaning and degreasing of all types of parts
Aqueous industrial parts washers suitable for washing and degreasing mechanical parts, tools, engine components, implements, moulds and stamped parts.
We offer various models with basket diameters ranging from aprroximately 500 to 1500 mm, covering most typical needs.
If the standard models do not meet your needs, custom rotary basket parts washers can be fabricated. For large or heavy pieces, we recommend rotating platform parts washers.
|
AG SONIC Technical Data Table |
|||||||
|
MODEL |
AG. |
550 |
600 |
750 |
900 |
1150 |
1500* |
|
Depth |
mm |
600 |
705 |
955 |
1105 |
1355 |
1600 |
|
Length |
mm |
800 |
885 |
1035 |
1185 |
1470 |
1600 |
|
Height |
mm |
870 |
1130 |
1130 |
1130 |
1280 |
1280 |
|
Weight |
Kg |
50 |
70 |
90 |
120 |
170 |
300 |
|
Basket Diameter |
mm |
550 |
600 |
750 |
900 |
1150 |
1500 |
|
Working Height |
mm |
360 |
450 |
450 |
450 |
550 |
550 |
|
Tank Capacity |
L |
35 |
70 |
90 |
130 |
210 |
250 |
|
Basket Load |
Kg |
15 |
150 |
200 |
200 |
400 |
400 |
|
Power |
V |
230 |
400 3~ |
400 3~ |
400 3~ |
400 3~ |
400 3~ |
|
Pump Power |
kW |
0.56 |
0.75 |
1.85 |
1.85 |
2.2 |
2.2 |
|
Pump Flow |
Lts/min |
50 |
100 |
130 |
130 |
150 |
150 |
|
Working Pressure |
bar |
2.4 |
2.5 |
3.5 |
3.5 |
4.5 |
4.5 |

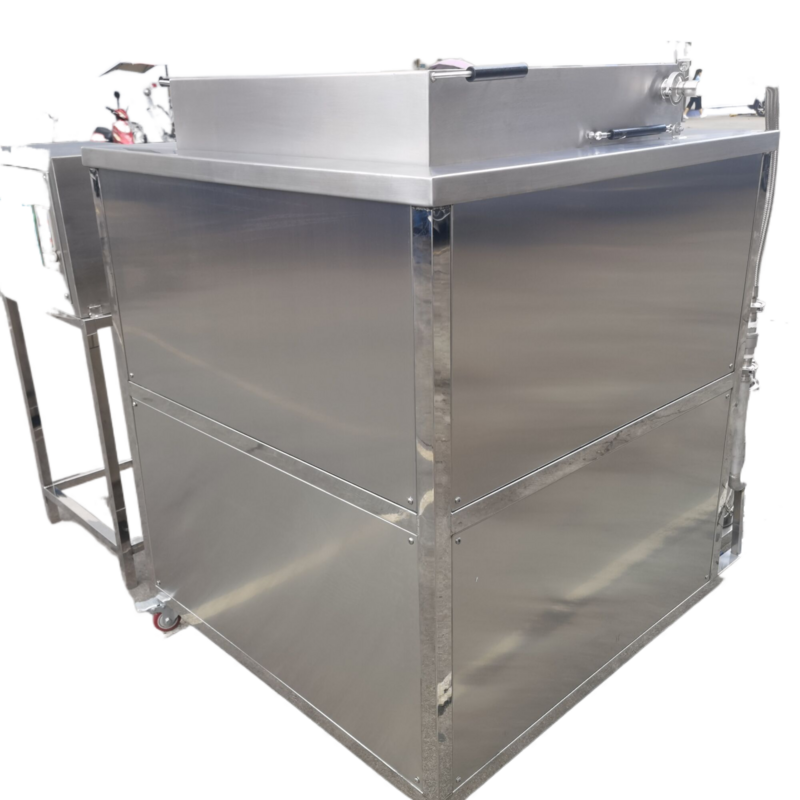

Rotary Parts Washers are ideal for cleaning parts quickly and efficiently without the need for dangerous solvents. The units were designed with ease of ue, power savings, time savings, and overall cost effectiveness in mind.
The fully enclosed cleaning process includes a rotating basket with high pressure jets of cleaning fluid to efficiently clean parts without wasting production time.
Different length wash cycles can be set depending on the degree of dirt build up.
The Rotary Parts Washers come with the following standard features:
AG Sonic has been manufacturing ultrasonic parts cleaners for years, providing manufacturers with the highest-quality systems available.
[wpforms id=”13019″]
Why Choose Us
A: Ultrasonic Cleaning is the use of sound waves through water to create microscopic implosions, removing contamination from surfaces, nooks and crannies.
A: The technical process: Ultrasonic energy is introduced into the body of water via transducers.
A: We recommend that you choose the right cleaning agent by the cleaning effect you want to achieve.
A: Most poor cleaning usually results from improper control of one or more process variable(s); such as choosing the wrong detergent solution, insufficient heat, or not allowing enough time for the particular soil to be removed. If you suspect that your ultrasonic cleaner is not cavitating properly, there are two simple tests you can perform: the “glass slide” test and the “foil” test.
A:Rinsing is recommended to remove any chemical residue, which could be harmful to the part. Parts can be rinsed right in your ultrasonic cleaner, using a clean water bath, or in a separate tub containing tap, distilled or deionised water.
A: Heat usually enhances and speeds up the cleaning process, and most detergent solutions are designed to work best at an elevated temperature. The best way to find the optimum temperature, which will give you the fastest, cleanest and safest results, is to run tests. Usually, the best results are within the 50°C to 75°C range.
A: I would definitely recommend, especially the particular unit we have.
A: We did plan originally to get a washer disinfector, but we didn’t think it was worthwhile investment compared to the ultrasonic cleaner.
A:It really speeds up the decontamination process and our staff don’t have hand scrub equipment,.
Contact to our expert get the best solution for your requirements.
