| Specifications for ultrasonic cleaner T-90S |
| Model |
T-90S |
| Tank capacity |
540L |
| Tank size |
1000x800x700mm |
| Unit size |
1140x940x920mm |
| Tank material |
2mm SUS304 |
| Ultrasonic power |
4500W |
| Heating power |
12KW |
| Timer |
1-99min adjustable |
| Heater |
0-80c adjustable |
| Frequency |
28/40khz |
| Control |
External generator, more stable |
| Optional |
Oil filter system, pneumatic lift, rinsing tank, etc. |
| Voltage |
110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases |
| Warranty |
1 year |
| Packing |
1unit/wooden case |

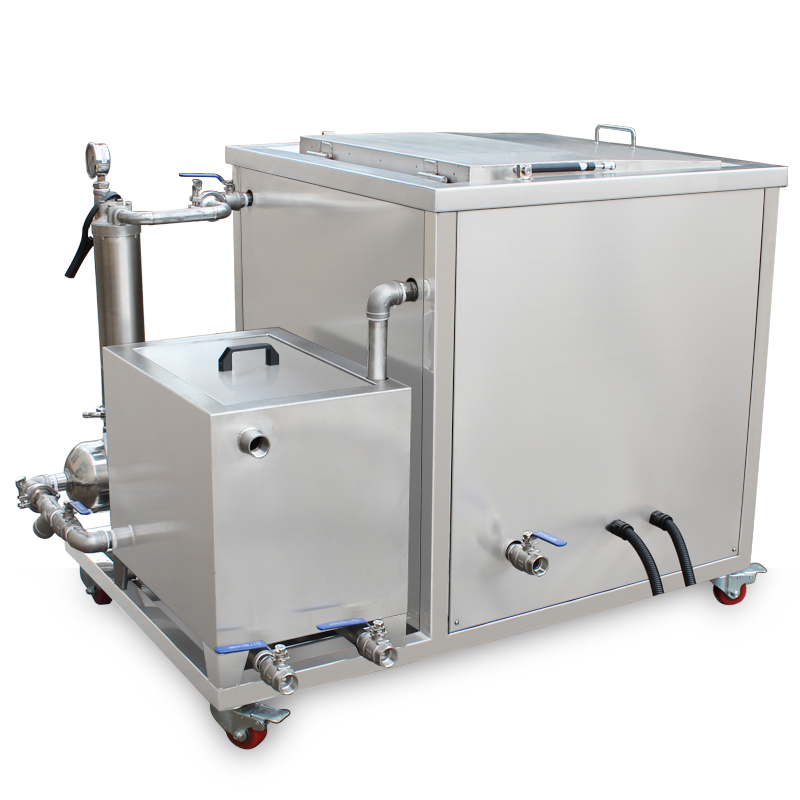

Equipped with a bath filtration system + Surface sweeping (skimming).
ULTRASONIC POWER 4500 Watts peak
90 transducers 28kHz – 4500 watts efficient
transducers placed in boxes submerged in the tank for easier maintenance
2 set SWEEP function for better distribution of waves
Stainless steel tank 1000x800x700 mm (int. Dimension LxWxH)
2mm stainless steel thickness, SUS304 /316L quality, welded and reinforced tank
Volume 560L calculated according to the rounded formula LxWxH not expressing the exact water capacity
Man-height chassis on casters
A stainless steel support is provided to place the generators near the tank
Timer integrated in the control panel with memory and digital display of the remaining time
FAST heating power 9000 Watts (three-phase)
Temperature adjustment from 0 to 90 ° separate from the use of ultrasound
Stainless steel drain valves, 1 “format to quickly empty the tank and the grease trap
Very robust reinforced stainless steel basket (load 300KG) + hydraulic cover included
Standard 10 micron cartridge filtration system (other filtration possible)
choice of several filtration levels by changing the cartridge
Recycling pump with sweeping of the bath surface (skimming)
With separate drain
CE approved, 1 year warranty
> The advantages of the filtration + skimming system:
– saving of detergent and water
– Filter pump with cartridge -> less frequent emptying and much cleaner bath
-Oil skimmer tank -> allows the recycling of oil and heavy grease discharges

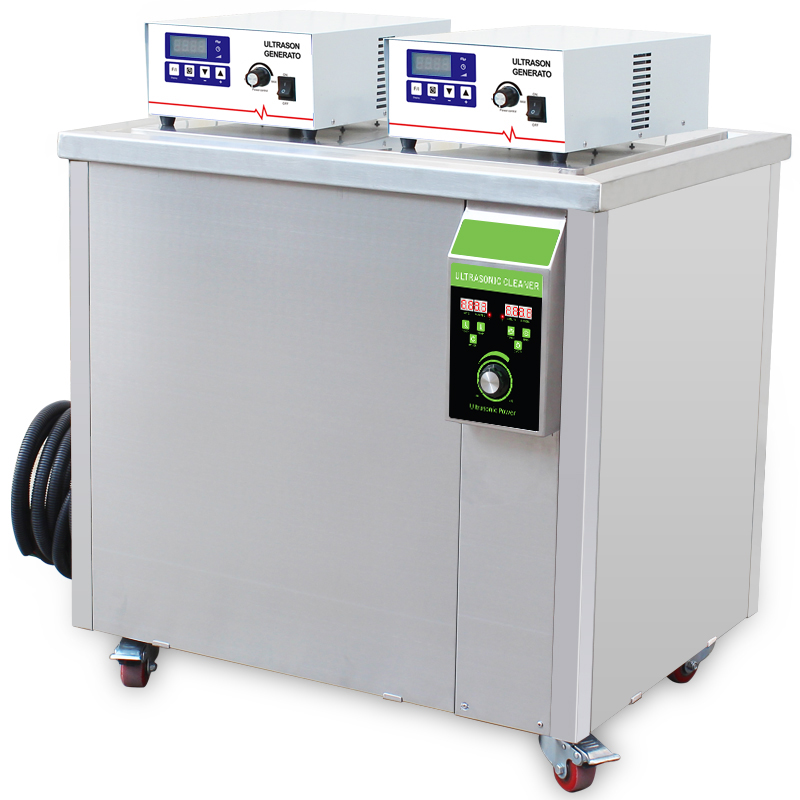

The advantages of external frequency generators:
– Easy maintenance
– No risk of water dripping on the remote electronics -> High reliability!
– No transmission of heat from the tank to the electronics, increases service life
– These frequency generators are equipped with a microprocessor allowing a continuous adjustment of the frequency for a better cleaning efficiency. The resonance frequency is thus permanently optimized whatever the temperature of the bath, the water level or the density of the objects.
> The advantages of the AG Sonic design for this 560 liter ultrasonic cleaner:
– Heating elements immersed in the tank for rapid heating but without loss of useful volume
– a basket which occupies the maximum useful space of the tank. Very strong handles with 4 supports for hoist lifting.
-Casters wheel equipped with brakes and allowing easy movement of the cleaner.
– The external ultrasonic generators are controlled from the control panel located on the front of the tank, all the controls are therefore within easy reach of the operator. The ultrasonic generators can thus be placed in safety on a storage support on the ground (supplied) away from the tank. The ultrasonic generators are thus protected from any accidental dripping of water and are perfectly ventilated.
– The ultrasonic transducers are installed in stainless steel boxes submerged at the bottom of the tank. The main advantage is that the transducers can be changed easily and inexpensively in the event of a technical problem. Most manufacturers fix the transducers under the tank and in this case it is often impossible to change the transducers if they are accidentally damaged or when possible the costs incurred are excessively high. Our technology of transducers immersed in boxes allows you to keep your cleaner by changing only the ultrasonic boxes. It is a very important saving!
The efficiency of ultrasonic transducers also decreases over the years, our submersible housing technology allows you to easily change ultrasonic transducers if you notice a decrease in cleaning efficiency after a few years of loyal service. Most other brands prefer to sell you a new machine …
– This very high quality SUS304/ 316L stainless steel tank ensures resistance to oxidation even with detergents with acidic pH, the thickness of 2mm allows better resistance to abrasion in the event of abrasive deposits at the bottom of the tank, and will allow to resist for many years against the natural erosion of ultrasonic cavitation.
