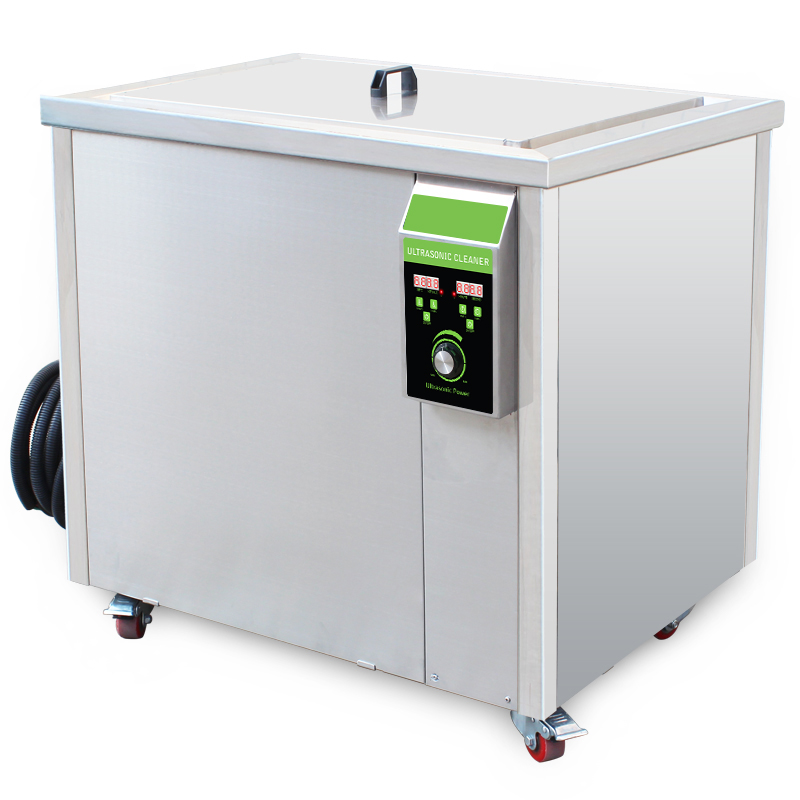

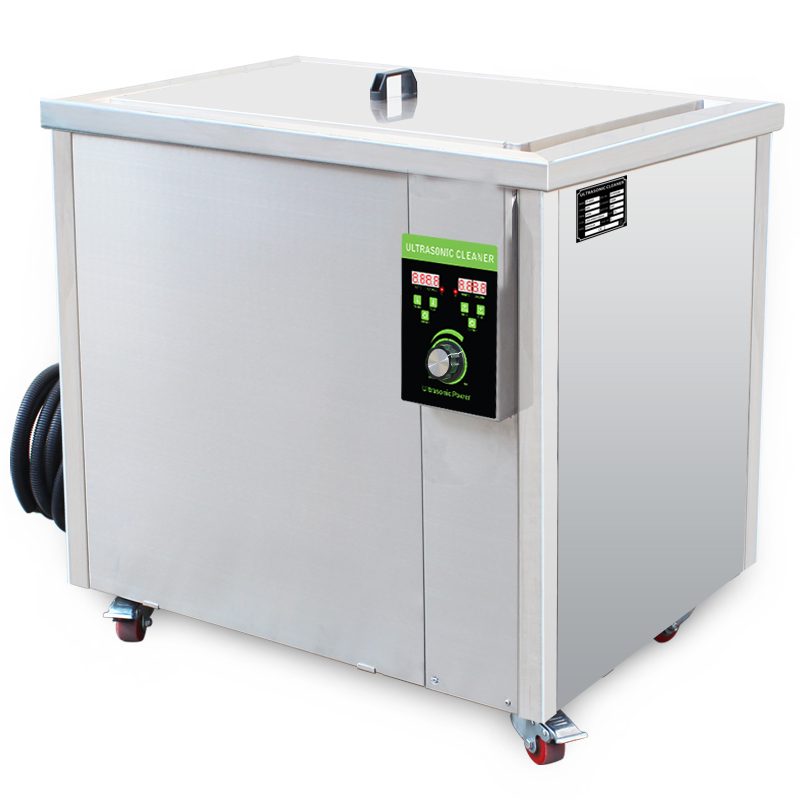

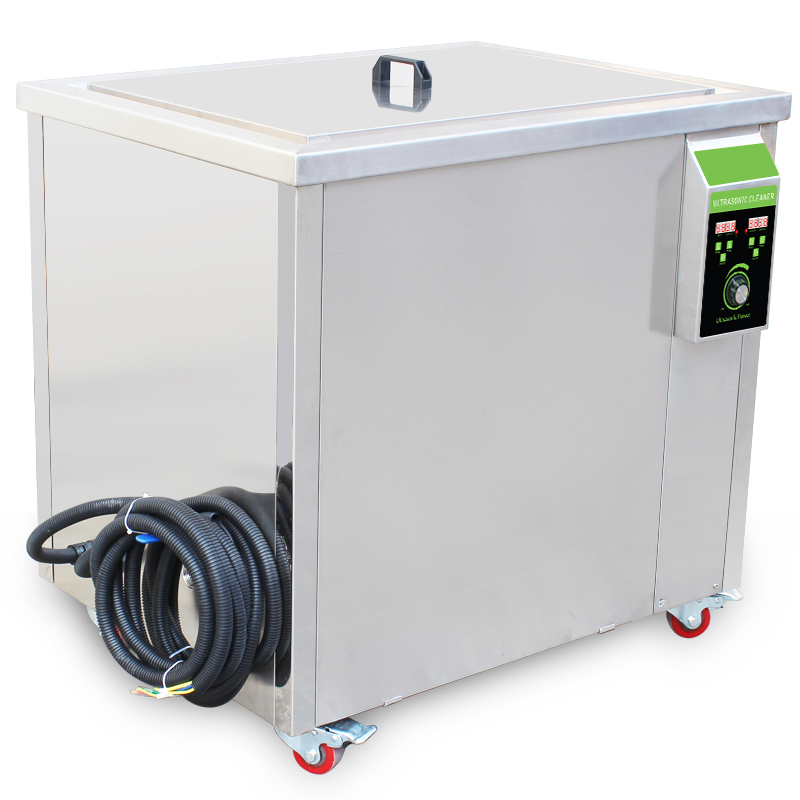

Specifications for ultrasonic cleaner T-48S
|
| Model |
T-48S |
|
Tank capacity
|
175L |
|
Tank size
|
700x500x500mm
|
|
Unit size
|
840x640x720mm
|
|
Tank material
|
2mm SUS304
|
|
Ultrasonic power
|
2400W |
|
Heating power
|
6KW |
|
Timer
|
1-99min adjustable
|
|
Heater
|
0-80c adjustable
|
|
Frequency
|
28/40khz
|
|
Control
|
External generator, more stable
|
|
Optional
|
Oil filter system, pneumatic lift, rinsing tank, etc.
|
|
Voltage
|
110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases
|
|
Warranty
|
1 year
|
|
Packing
|
1unit/wooden case
|
Ultrasonic Machine Features:
With cavitations effect Ultrasonic cleaning technology is widely used in engine block, engine parts cleaning, semi-conductor silicon chip cleaning, optical glass cleaning, parts of watch and cock cleaning, jewelry cleaning, polyester filtration core cleaning, widow blind cleaning and etc.
Mainly application:
Applied for ultrasonic cleaning of engine parts, block,Semiconductor wafer, optical glass, clocks, beads and any other plastic, metal parts, anyway, the cleaning parts can immerse into the water without damage
Features:
All stainless steel structure, thickening Stainless steel plate,
adopting high Q value transducer and binding process large power of ultrasonic output, set solvent heating and temperature automatic thermostat instrument, and temperature control range 0~100, base solvent, no pollution
Range: semi-conductor silicon chip, optical glass, parts of watch and clock, glasses, Jewelry, polyester filtration core and etc
AG engine block ultrasonic cleaning machine effectively and thoroughly clean all types of engine parts
01: Automotive: thoroughly removes carbon deposits, grease, and other types of dirty and contaminants from carburetor, exhaust manifolds, cylinder blocks, 2-stroke and 4 stroke motorcycle engines, snow machines, ATV cylinders and heads, and more.
02: Marine: Suitable for inboard and outboard motors, the cleaning chemistry is both thorough and gentle on the aluminum parts reducing the risk of future corrosion
03: Aircraft: The high performance demands of aircraft engines establish the need for an intensive cleaning process that will restore the engine part to near original condition, our engine block ultrasonic cleaning machine easily, thoroughly, and safely clean both large and small parts, turbine blades, fuel nozzles, generator components, brakes and other parts that require periodic cleaning are all effectively and thoroughly cleaned using the ultrasonic cleaning proces
